Mini Module 1x2 Optical Splitter Blockless SC/UPC Singlemode 900μM

Name: Mini Module 1x2 Optical Splitter Blockless SCUPC Singlemode 900μM
Brand: GoreLink
Price: 1 USD

Quality Mini Module 1x2 Optical Splitter Blockless SC/UPC Singlemode 900μM wholesale

Brand Name : GoreLink

Model Number : GS01-12SC

Certification : RoHS,REACH

Place of Origin : China

Product Name : 1x2 Blockless PLC Splitter

Part Number : GS01-12SC

Form Factor : Mini Module

Fiber Type : Singlemode

Connector Type : SC/UPC

Fiber Diameter : 900μm

Wavelength Range : 1260-1650nm

Features : Low insertion loss,Compact Design

Contact Now

What is PLC Splitter?

A PLC splitter (Planar Lightwave Circuit splitter) is an optical device used in fiber-optic communication networks to split a single input optical signal into multiple output signals or combine multiple input signals into a single output. It is widely used in Passive Optical Networks (PON) such as FTTH (Fiber to the Home) systems.It is type of splitter is an integral component in Passive Optical Networks (PON), which are commonly used in FTTH (Fiber to the Home) systems.It can be 1x2,1x4,1x8,1x16,1x32,1x64, and 2x2,2X4,2X8,2X16,2X32,2X64 type.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

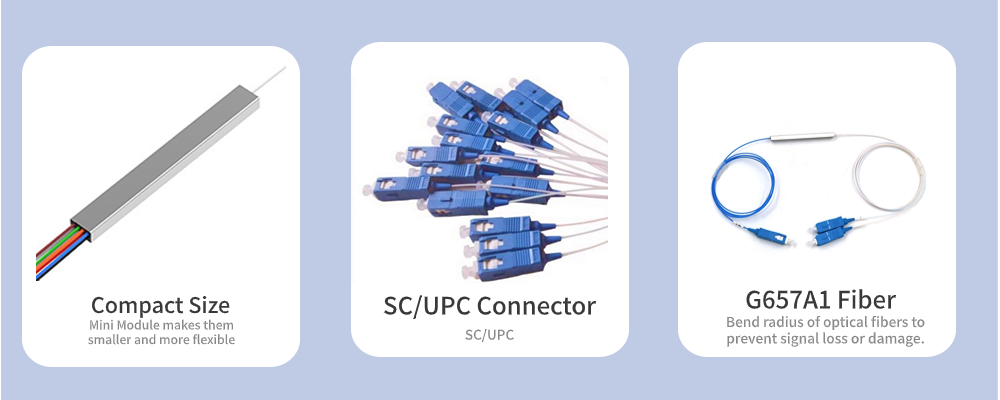

Key Features

Passive Device
Uniform Splitting
Compact Design
Low Insertion Loss

General Specification

Parameters
Fiber Mode	Singlemode G657A1
Configuration	1 in 2 out
Connector Type	SC/UPC
In/Out Cable Diameter	0.9mm
Length	1.5m or Customized
Package Way	Mini Module
Operating Wavelength	1260-1650nm
Split Ratio	50/50
Insertion Loss	≤ 4.1dB
Return Loss	≥ 60dB
Directivity	≥ 55dB
Steel Tube Dimension	60×7×4mm
Operating Temperature (°C)	-20 ~ +75
Storage Temperature (°C)	-40 ~ +85

Blockless PLC Splitter

Premium Fiber Splitter Guarantees Stable Transmission. It is an integral component in Passive Optical Networks (PON), which are commonly used in FTTH systems.

Mini Module 1x2 Optical Splitter Blockless SC/UPC Singlemode 900μM

Download Datasheet

Blockless PLC Splitters

Ordering Information

PART NO.	DESCRIPTION
GS01-12SC	1x2 Blockless PLC Splitter, Mini Module, 900μm, SC/UPC, Singlemode
* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com .
